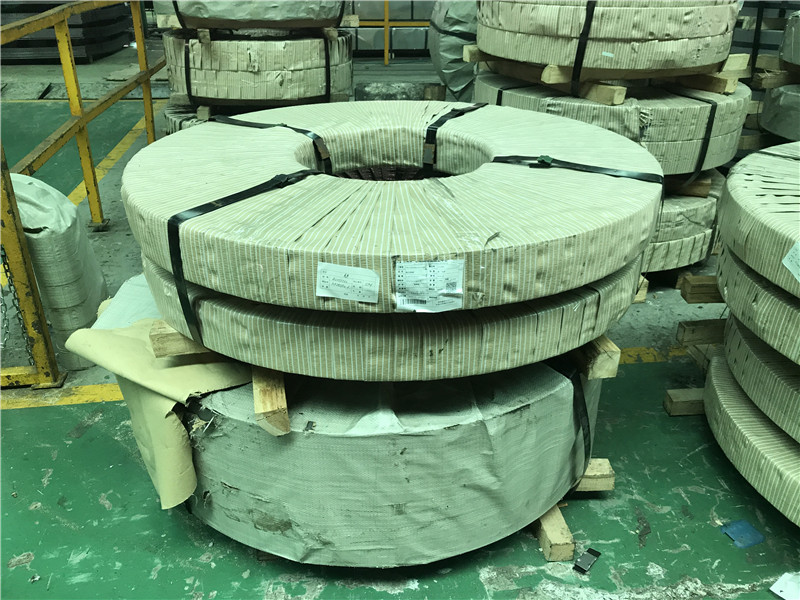

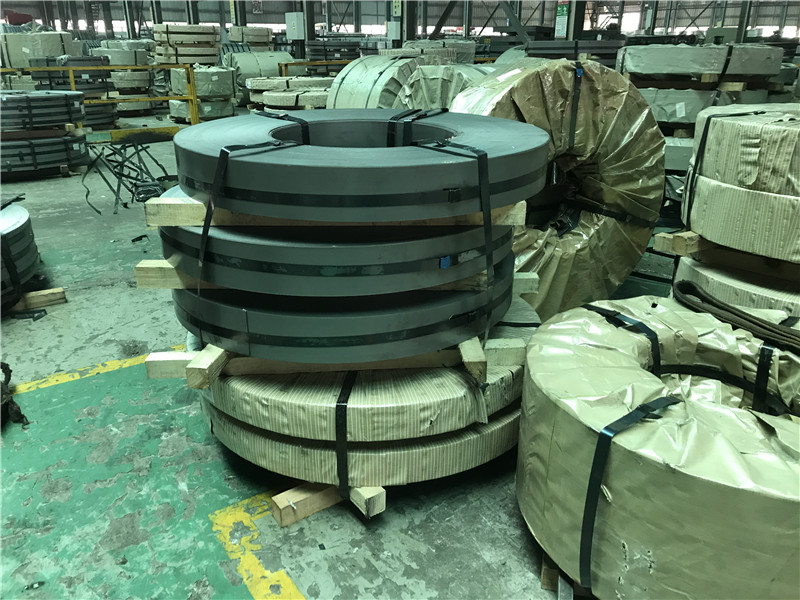

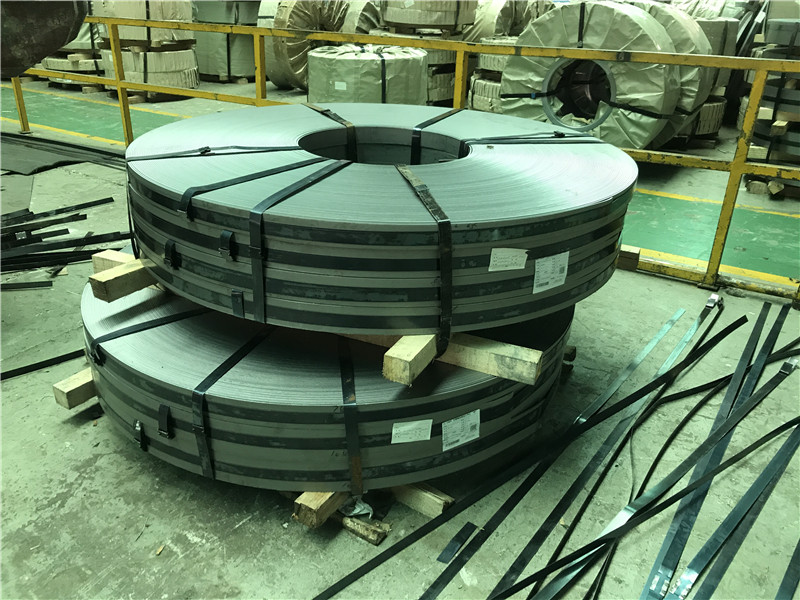

Steel Strip
Product Drawing
Specification
STEEL PLATE
| Material | Carbon steel Plate & Coil | |
| Manufacture standard | GB,JIS,EN,ASTM,ASME,BS,CCS,DNV,GL,LR,BV,ABS,NK,KR,RINA,GB5313 API | |
| Manufacture Process | HR,CR,N,T,N+T,Q+T | |
| Other processing | Cutting/bending/Hot dip galvanizing /spraying painting/punching/sand blasting/anti-rust oil | |
| Application | Mechanical manufacture, steel structure, shipbuilding,stairs and etc. | |
| Item Type | Thickness(MM) | Width(MM) |
| Hot Rolled Low Carbon Steel Plate | 1.5-20 | 1250/1500/1800/2000/2200 |
| Low Alloy Steel plate | 3-20 | 1250/1500/1800/2000/2200 |
| Steel Coil | 1.5-20 | 1250/1500/1800/2000 |
| Cold Rolled Steel sheet | 0.5-3 | 1000/1250/1500 |
| Galvanized sheet | 0.23-3 | 1000/1220/1250 |
| Boiler& Pressure Vessel Plate | 6-20 | 1800/2000/2200 |
| Bridge plate | 5-20 | 1250/1500/1800/2000 |
| Checker Plate | 1.6-10 | 1250/1500 |
| Wear resistant plate | 1.5-20 | 1250/1500/1800/2000 |
| Corrosion resistant steel plate | 1.5-20 | 1250/1500/1800/2000/2200 |
| Pipeline Steel Plate | 6-20 | 1800/2000/2200 |
| Ship plate | 5-20 | 1500/1800/2000/2200 |
Remark:
1. The listed weight is based on carbon steel Weight of stainless steel need to confirm with
hongkong shunyun’s sales
2, If you can’t find the size you looking for in the listing here, please let us know and we’ll help
you find it!
| Product Name | Steel Grade |
| Hot Rolled Low Carbon Steel Plate | 20#;45# ; Q215(A,B), Q235(A,B,C,D,E);SS330, SS400 SS490;A36,S235(JR,JO,J2) ; S275(JR,JO,J2) (S)A283Gr.(A,B,C) St37-2,St37-3; SPCC,SPHC, SPHD,SPCD,SPHE,SPCE,S45C,S48C,S50C,S53C,S55C A573 (Gr.58, Gr.65,Gr.70) SM400(A,B,C) Fe360(A,B,C,D) ; |
| Low Alloy Steel plate | Q345(A,B,C,D,E) Q390(A,B,C,D,E) Q420(A,B,C,D,E) Q460(C,D,E),Q550(C,D,E),Q620(C,D,E)Q690D(C,D,E), Q890(D,E) Q960(D,E) SS540;SM490(A,B,C); SM490Y(A,B); SM520(B,C),SM570; A572 (GR.42,50,55,65) S275(JR,JO,J2G3,J2G4) S355(JR,JO,J2G3,J2G4,K2G3,K2G4); E395,E335,E360; S355N/NL S420N/NL、S460N/NL、S355M/ML、S420M/ML、S460M/ML; St44-3,St52-3,St50-2 St60-2,St70-2 |
| Alloy Steel plate | 15Cr, 20Cr, 40Cr, 20Mn2, 40Mn2,20CrMnSiA,25CrMnSiA,30CrMnSiA,35CrMnSiA, 15CrMo, 20CrMo,30CrMo,10CrMoAL, 12Cr1MoV, 25CrMo4,34CrMo4,42CrMo4, A514Gr(H,F), A517GrE |
| Cold Rolled Steel sheet | SPCC, St12, DC01, Q235(A,B), SPCE, ST14, DC04 , St15, DC05, SC3, St16, DC06, St17, SPCD, ST13,DC03,20-45#,08-15# |
| Z-Direction Property Plate | Q235(A,B,C,D,E)(Z15, Z25,Z35); Q345 (B,C,D,E)(Z15, Z25,Z35);Q390(B,C,D,E) (Z15, Z25,Z35);Q420(B,C,D,E) (Z15, Z25,Z35) |
| Boiler& Pressure Vessel Plate | Q245R, Q345R, Q370R, Q420R,18MnMoNbR, 3MnNiMoR,16MnDR,15CrMoR,14Cr1MoR,12Cr2Mo1R,12Cr1MoVR, 12Cr2Mo1VR, 09MnNiDR, 12MnNiVR, (S)A203(A,B,D,E,F) (S)A204M(A,B,C) (S)A285M(A,B,C), (S)A516Gr.(60,65,70) ,SA516MGr.485 (S)A387MGr.(5,11,12,22,91) (S)A515MGr(60,65,70), (S)A537M(Cl1,Cl2) ,(S)A302M(Gr.A,B,C,D) (S)A662Gr.(A,B,C); (S)A533M(I,II)、(S)A737Gr.(B,C) A738Gr.(A,B, C); P235GH , P265GH, P295GH,P355GH,16Mo3, 13CrMo4-5, 10CrMo9-10, 11CrMo9-10 P275(NH,NL1,NL2) P355(N.NH,NL1,NL2) P460(NH,NL1,NL2) |
| Bridge plate | Q235(Qc,D,E ), Q345(Qc,D,E ),Q370(Qc,D,E ),Q420(Qc,D,E ),Q460(Qc,D,E ),Q500(QD,E ),Q550(QD,E ) ,Q620(QD,E ),Q690(QD,E ),A709-50T-1/50T-2/50T-3/50F-1/50F-2/50F-3、 A 709-50W-A/B/C-F1/F2/F3 -T1/T2/T3 |
| Pipeline Steel Plate | B,X42,X46,X52,X56,X60,X65,X70,X80 ; L245, L290, L320, L360, L390, L415, L450,L485 |
| Checker Plate | Q235B, SS400, A36 , S235JR, SA283 Gr.A/B/C |
| Weather resistant plate | NM300,NM360, NM400, NM450, NM500,NM550,NM600.WNM320, WNM360,WNM400, WNM450, WNM500,WNM550,WNM600,WRZ400, HARDOX400,HARDOX450,HARDOX500 |
| Corrosion resistant steel plate | Q235NH(A,B,C,D,E) , Q295NH(A,B,C,D,E), Q355NH(A,B,C,D,E) , Q415NH(A,B,C,D,E), Q460NH(A,B,C,D,E),Q500NH(A,B,C,D,E) , Q550NH(A,B,C,D,E), S235(JOW,J2W), S355(JOW,J2W,K2W),A588M Gr(A.B,K) Cor-tenB, 08Cu, 09Cu,,B480GNQR,09CuPCrNi-A,09CrCuSb,SPA-H |
| Marine engineering equipment and ship’s steel plates | CCS/ABS/LR (A,B,D,E) A131Gr.(A,B,D,E,CS) A131Gr(AH32,DH32,EH32,FH32); A131Gr(AH36,DH36,EH36,FH36) A131Gr(AH40,DH40,EH40,FH40)A514MGr.(F,Q,H) A517MGr(B/F) API 2H(42,50), API 2W(50,60) API 2Y(50,60); A517GrQ, A514GrQ,A514GrQMoified, A517GrQMoified. |
| Remark: | |
| 1, If you can’t find the grade you looking for in the listing here, please let us know and we’ll help you find it! |
