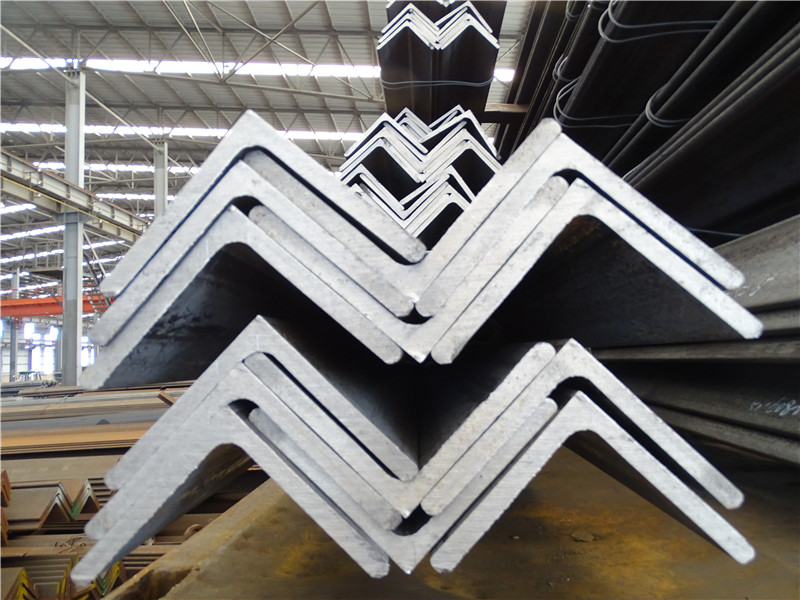

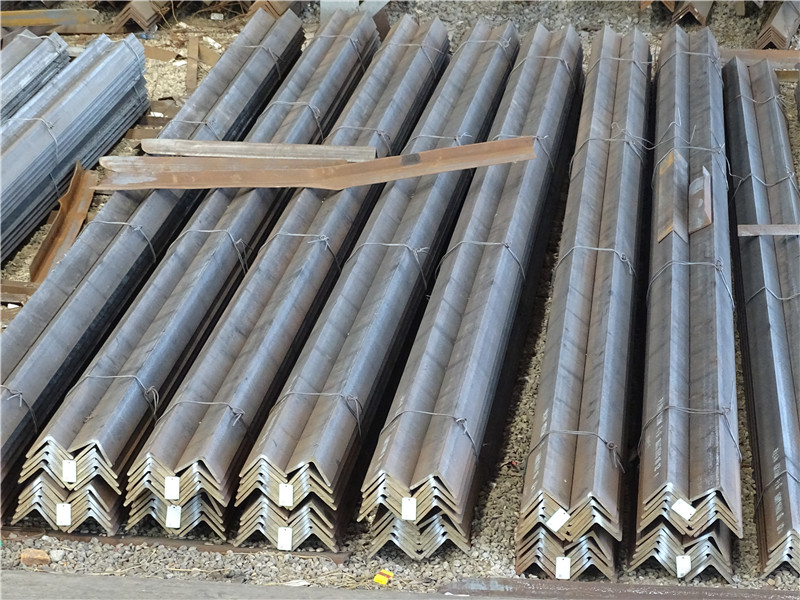

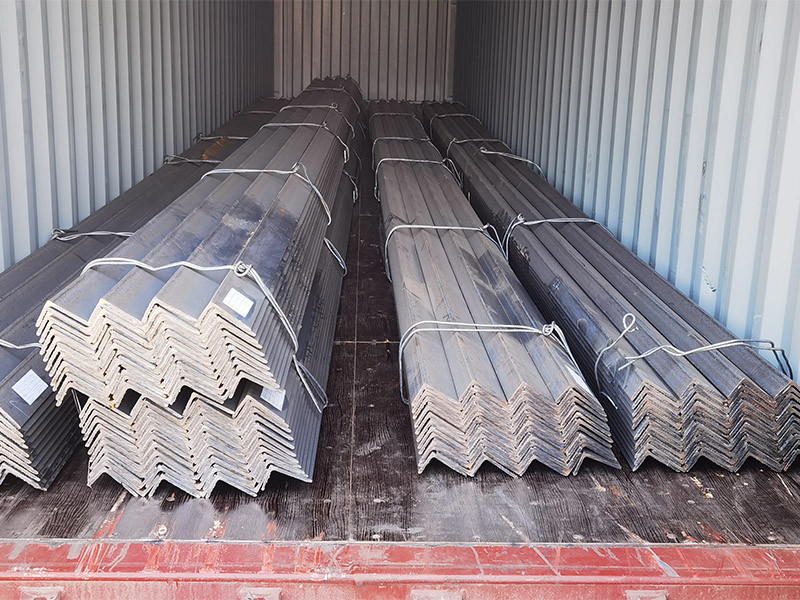

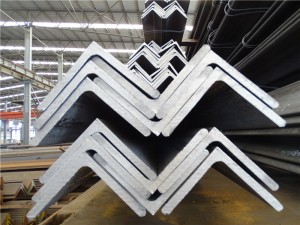

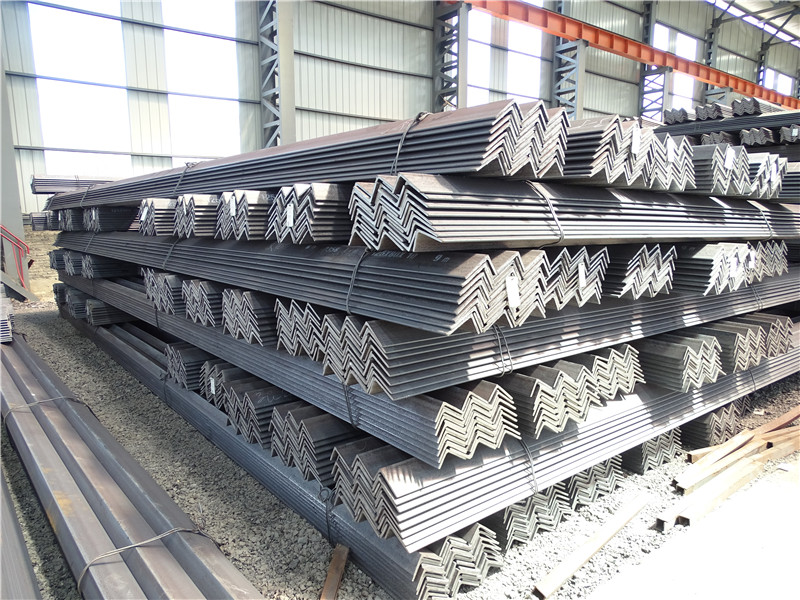

Steel Angle

Steel Angle Featured Image
  • Steel Angle
  • Steel Angle
  • Steel Angle
  • Steel Angle

Short Description:


Product Detail

EQUAL STEEL ANGLE BAR

CHEMICAL

Product Tags

Product Drawing

2 (1)
2 (2)
2 (3)

Specification

CHEMICAL & MECHANICAL COMPOSITION OF PROFILE SECTIONS

Material Carbon steel & Stainless steel
Manufacture standard GB、JIS、DIN、ASTM、Shipbuilding
Manufacture Process Hot rolled
Standard length 25-100: 6M ; 100-160: 9/12M ; 180-200: 12M                                     or cut according to customer’s requirment
Other processing Cutting/bending/Hot dip galvanizing /spraying painting/punching/sand blasting/anti-rust oil
Application Mechanical manufacture, steel structure, shipbuilding, electronic tower and etc.
211
Unequal angle Specification
size w/m size w/m size w/m size w/m
125*75*7 10.700 100*63*6 7.550 140*90*10 17.475 100*75*6 8.060
125*75*8 12.200 100*63*8 9.878 140*90*12 20.724 100*75*7 9.340
125*75*9 13.600 100*63*10 12.142 140*90*14 23.908 100*75*8 10.600
125*75*10 15.000 100*80*6 8.350 160*100*10 19.872 100*75*9 11.800
125*75*12 17.800 100*80*7 9.656 160*100*12 23.592 100*75*10 13.000
45*30*4 2.251 100*80*8 10.946 160*100*14 27.035 100*75*12 15.350
50*32*4 2.494 100*80*10 13.476 160*100*16 30.835 150*90*8 14.700
56*36*4 2.818 110*70*6 8.350 180*110*10 22.273 150*90*9 16.400
56*36*5 3.466 110*70*7 9.656 180*110*12 26.464 150*90*10 18.200
63*40*5 3.920 110*70*8 10.946 180*110*14 30.589 150*90*12 21.600
63*40*6 4.638 110*70*10 13.476 180*110*16 34.649 200*100*10 23.000
75*50*5 4.808 125*80*7 11.066 200*125*12 29.761 200*100*12 27.620
75*50*6 5.699 125*80*8 12.551 200*125*14 34.436 200*100*15 30.040
75*50*8 7.431 125*80*10 15.474 200*125*16 39.045
90*56*6 6.717 125*80*12 18.330 200*125*18 43.588
90*56*8 8.779 140*90*8 14.160 200*125*20 47.885

Remark: 1. The listed weight is based on carbon steel
Weight of stainless steel need to confirm with hongkong shunyun’s sales
2, If you can’t find the size you looking for in the listing here, please let us know and we’ll help you find it!

  • Previous:
  • Next:
    • Material Carbon steel & Stainless steel
    Manufacture standard GB、JIS、DIN、ASTM、Shipbuilding
    Manufacture Process Hot rolled
    Standard length 25-100: 6M ; 100-160: 9/12M ; 180-200: 12M                                     or cut according to customer’s requirment
    Other processing Cutting/bending/Hot dip galvanizing /spraying painting/punching/sand blasting/anti-rust oil
    Application Mechanical manufacture, steel structure, shipbuilding, electronic tower, and etc.

    1

    Equal angle Specification
    size w/m size w/m size w/m size w/m size w/m
    20*3 0.889 65*8 7.660 110*7 11.928 150*14 31.600 250*24 90.433
    20*4 1.145 70*5 5.397 110*8 13.532 150*15 33.800 250*25 93.770
    25*2 0.763 70*6 6.406 110*10 16.690 160*10 24.729 250*26 97.461
    25*4 1.459 70*7 7.398 110*12 19.782 160*12 29.391 250*28 104.422
    30*2 0.922 70*8 8.373 110*14 22.809 160*14 33.987 250*30 111.318
    30*3 1.373 75*5 5.818 120*8 14.880 160*16 38.581 250*32 118.149
    30*4 1.786 75*6 6.905 120*10 18.370 175*12 31.800 250*35 128.271
    40*3 1.852 75*7 7.976 120*12 21.666 175*15 39.400 250*35 128.271
    40*4 2.422 75*8 9.030 120*10 18.370 180*12 33.159
    40*5 2.976 75*10 11.089 120*12 21.666 180*14 38.382
    45*4 2.736 75*9 10.060 125*8 15.504 180*16 43.542
    45*5 3.369 80*5 6.211 125*10 19.133 180*18 48.634
    50*3 2.332 80*6 7.376 125*12 22.696 200*14 42.894
    50*4 3.059 80*7 8.525 125*14 26.193 200*15 45.300
    50*5 3.770 80*8 9.658 130*9 17.900 200*16 48.680
    50*6 4.465 80*10 11.874 130*10 19.800 200*18 54.401
    56*4 3.446 90*6 8.350 130*12 23.600 200*20 60.056
    56*5 4.251 90*7 9.656 130*13 25.400 200*24 71.168
    60*5 4.520 90*8 10.946 130*14 27.200 200*25 73.600
    60*6 5.420 90*10 13.476 130*16 30.900 220*16 53.901
    63*4 3.907 90*12 15.940 140*10 21.488 220*18 60.250
    63*5 4.822 100*6 9.366 140*12 25.522 220*20 66.533
    63*6 5.721 100*7 10.830 140*14 29.490 220*22 72.751
    63*8 7.469 100*8 12.276 140*16 33.393 220*24 78.902
    63*10 9.151 100*10 15.120 150*9 20.700 220*26 84.987
    65*5 5.000 100*12 17.898 150*10 23.000 250*18 68.956
    65*6 5.910 100*16 23.257 150*12 27.300 250*20 76.180

    CHEMICAL & MECHANICAL COMPOSITION OF PROFILE SECTIONS

    Standard Grade Method   of Deoxidization % Chemical Components%  Mechanical Property
    C≤ Si≤ Mn≤ P≤ S≤ Nb≤ V≤ Ti≤ Als≥ Co≤ Cu≤ Ni≤ Cr≤ Mo≤ (N/MM2) T.S （N/MM2) Y.S  Elongation               A(%) Impact Power
    ≤16 16~40 20℃ 0℃ -20℃
         GB Q235B Z 0.2 0.35 1.4 0.045 0.045 370-500 ≥235 ≥225 ≥26 ≥27
    Q345B Z 0.2 0.5 1.7 0.035 0.035 0.07 0.2 0.2 470-630 ≥345 ≥325 ≥21 ≥34
    Q420B Z 0.2 0.5 1.7 0.035 0.035 0.07 0.2 0.2 520-680 ≥420 ≥400 ≥18 ≥34
    Q420C Z 0.2 0.5 1.7 0.03 0.03 0.07 0.2 0.2 0.015 520-680 ≥420 ≥400 ≥19 ≥34
    Q460C Z 0.2 0.6 1.8 0.03 0.03 0.11 0.2 0.2 0.015 550-720 ≥460 ≥440 ≥17 ≥34
     JIS SS400 Z 0.05 0.05 400-510 ≥245 ≥235 ≥23
    SS540 Z 1.6 0.04 0.04 ≥540 ≥400 ≥390 ≥17
                 EN S235JR Z 0.17 1.4 0.035 0.035 360-510 ≥235 ≥225 ≥26 ≥27
    S235JO Z 0.17 1.4 0.03 0.03 360-510 ≥235 ≥225 ≥26 ≥27
    S235J2 Z 0.17 1.4 0.025 0.025 360-510 ≥235 ≥225 ≥24 ≥27
    S275JR Z 0.21 1.5 0.035 0.035 410-560 ≥275 ≥265 ≥23 ≥27
    S275JO Z 0.18 1.5 0.03 0.03 410-560 ≥275 ≥265 ≥23 ≥27
    S275J2 Z 0.18 1.5 0.025 0.025 410-560 ≥275 ≥265 ≥21 ≥27
    S355JR Z 0.24 0.55 1.6 0.035 0.035 470-630 ≥355 ≥345 ≥22
    S355JO Z 0.2 0.55 1.6 0.03 0.03 470-630 ≥355 ≥345 ≥22
    S355J2 Z 0.2 0.55 1.6 0.025 0.025 470-630 ≥355 ≥345 ≥22
     ASTM A36 Z 0.25 0.4 0.04 0.05 400-550 ≥250 ≥250 ≥23
    A572-50 Z 0.23 0.4 1.35 0.4 0.05 0.05 0.15 0.15 ≥450 ≥345 ≥345 ≥21
    A572-60 Z 0.26 0.4 1.3 0.04 0.05 0.05 0.15 0.15 ≥520 ≥415 ≥415 ≥18
    A992 Z 0.23 0.4 0.5~1.5 0.035 0.045 0.05 0.11 0.05 0.6 0.45 0.35 0.15 ≥450 ≥345 ≥21
    shipbuilding A Z 0.21 0.5 ≥2.5C 0.035 0.035 400-520 ≥235 ≥235 ≥22
    B Z 0.21 0.35 0.8~1.2 0.035 0.035 400-520 ≥235 ≥235 ≥22 ≥27

    Remark:
    1, If you can’t find the grade you looking for in the listing here, please let us know and we’ll help you find it!
